Readymag Design Almanac is an educational project covering the fundamentals of design. This chapter explains the basics of the grid—any designer’s core tool for organising visual space. The text surveys the inner structure of 13 different projects, from online shops to media websites to books and magazines, explaining how their authors turn chaos into cosmos with the help of the grid.

2

Theory









3

Practice



1

Introduction

Invisible lines

An Easy Recipe

Structure

Module as Means

















Structure and Integrity

Proportionality

Modular Scales



















Grid

Intro

introduction

A specimen of a grid

We use the term “grid” to describe the designer’s basic tool for designing a space of any kind. Depending on the complexity of the final product, either several guidelines or a multi-layer modular system is used. As a rule, in developing a grid, the designer first takes into account all the variables of the layout—typographical elements, illustrations, graphics, photographs. It is advisable to have in mind ahead of time the arrangements of compositions of the future layout and the principles it will follow: peculiarities of the typographical hierarchy, the ways in which graphic elements are to be combined, their interplay with texts, the organization of different types of content on a page.


Essentially, in making the grid, the designer works out the rules and limits to be followed. These rules and limits create, as the work goes forward, a specific impression that often defines and directs the further development of the layout and sometimes leads to unexpected but very welcome results.


A good grid can be compared to the frame on which ivy ascends—a base that gives shape to the space the plant will cover but does not limit its natural growth. Similarly, in working with a properly organized grid, the designer uses as a base a system of harmonious relationships that makes it possible, through the varying of intonation, to create an image that is both regular and expressive, helping the reader grasp the idea while—ideally—enjoying the visual experience.



Grid

Theory

a.

invisible lines

Almost every layout has axes, invisible guidelines along which the key elements — text blocks, headlines, illustrations — are arranged. These guidelines are the elements of the grid. A grid can be very primitive and, for a book with a simple structure, may merely to be the baselines and margins of the text. Or it can be very complex, since it will have to deal, say, with the variety of texts, headlines, photos, announcements and graphics that make up a newspaper. For a multi-column magazine, the grid may unexpectedly change the number of columns from section to section, or on a website extend or compress in response to the width of the browser.



The structural basis of a composition is not always visible to the inexpert eye, but a layout without a grid is unlikely: it is almost surely there.





W

formerlyyes.com online store

W

Swiss Design Awards landing page

W

SMFB advertising agency main page

W

Sight Unseen online store

W

Style.com main page

Josef Muller-Brockmann. Full-page spread from the journal Neue Grafik

W

bloomberg.com/businessweek

W

taxonomyofdesign.com

W

blackestate.co.nz

W

silotheatre.co.nz

b.

an easy recipe



Books or articles on the history of typography can frighten the novice with talk of mathematics and geometry, references to Fibonacci Sequences, the Golden Ratio,          le Corbusier’s modulor and the work of the Swiss modernists. But the construction of modular grids, although often based on complex relationships between whole and part, is a matter of practical necessity. A person who has once faced the problem of designing a multipage document knows how extremely wearing it is to think anew on every page about where to put headlines or captions or what size type to use for a three-line heading and how much space to leave between it and the start of the text.



The process is made many times easier when you define the axes and margins for a group of pages. As to the theories just mentioned (which are complex only at first glance), they are merely various ways to help come up with a module. On the other hand, if you are confident in your own artistic sense, you can establish the main guidelines with your eye and forget about the Golden Ratio. The most important function of the modular grid is to ease the work of the designer in devising a multi-element or multipage layout.



A multipage publication, as a rule, contains a large number of visual elements, and their being seen as parts of a clear and well-thought-out structure simplifies the designer’s job.











The New York Times

M

The New York Times page spread
The New York Times page: SmartWool socks

Grid

Practice

e.

structure and

integrity







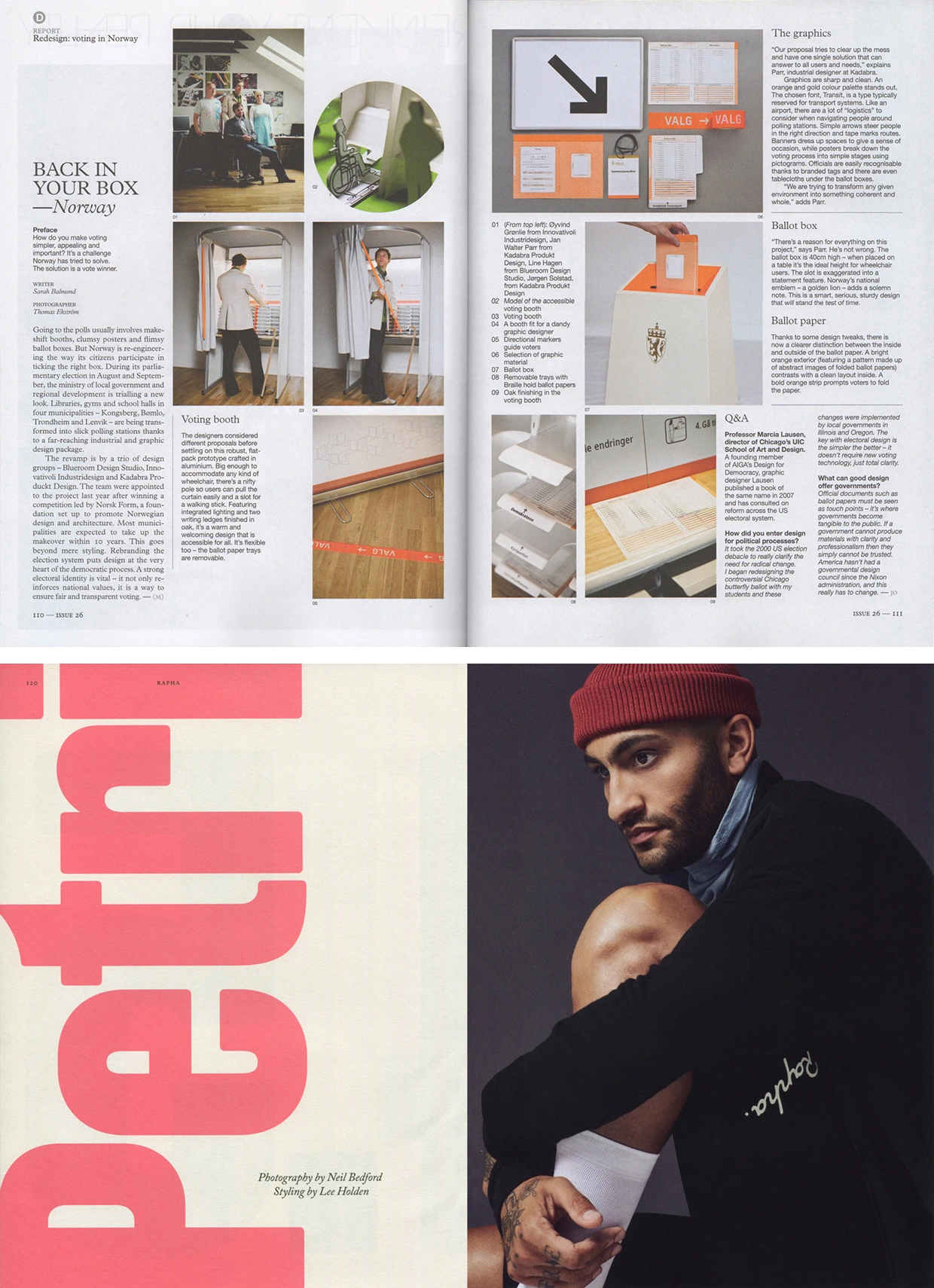

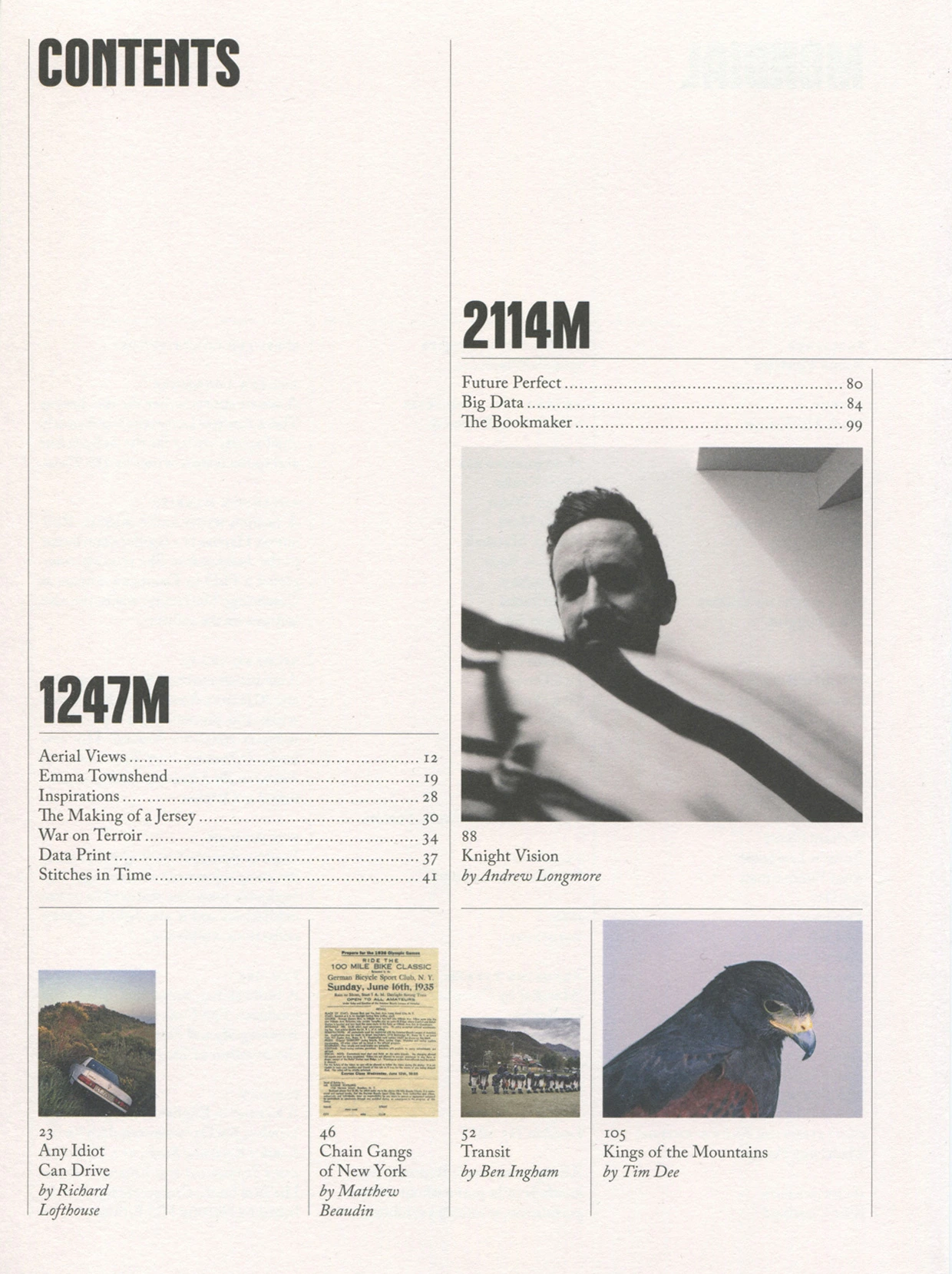

In designing print publications (and all the more for digitals), grids make it possible
to determine practically any parameter. They are truly a universal tool. But in most cases the grid determines only several of the most important features of any layout:
the width of the text area, the size of type and leading, and the division of the text in columns.
